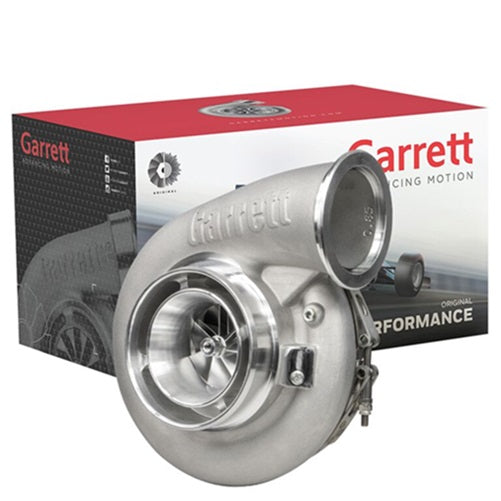

Garrett Supercore G-XRace GXR45-73 - 73mm GXRace, 1550HP Capable, PN: 934173-5004S

Product Description:

• Garrett Supercore G-XRace GXR45-73 - 73mm GXRace, 1550HP Capable, P/N: 934173-5004S

• ** Please add a turbine housing of your choice to this Supercore in order to complete a turbo unit. The G-XRace45 uses the same turbine housing as the G-Series G45 turbo.

Product Features:

• XBoost Techology increases power and performance
• +29% compressor flow (GXR45-67 compared to G45-1125)
• +11% compressor flow (GXR45-73 compared to G45-1350)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Twin-scroll T4 and V-band turbine inlet flanges available to meet the needs of racers with different engines and manifold designs

Product Specifications:

• Compressor Wheel Inducer: 73.9mm
• Compressor Wheel Exducer: 102mm
• Compressor Wheel Trim: 52
• Compressor Housing A/R: 0.85
• Turbine Wheel Inducer: 89mm
• Turbine Wheel Exducer: 82mm
• Turbine Wheel Trim: 84
