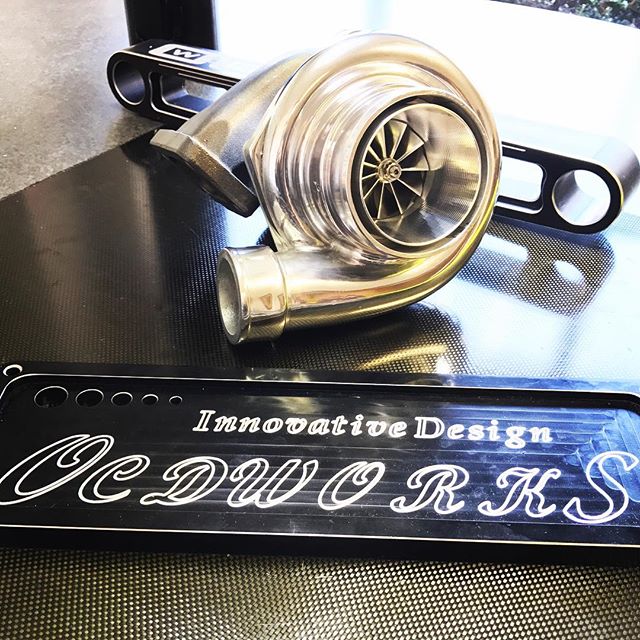

OCD-5851R Dual Ball Bearing Billet Turbocharger

This turbo features a Billet 58mm compressor wheel and a 55mm Turbine Wheel. This unit comes standard with a ported 4" Inlet / 2" Outlet compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The OCD-5851R is fully assembled and VSR balanced in-house. All of our turbochargers come with an industry standard 1 year unlimited mileage warranty.  ALL ocdworks turbocharger comes with our standard T51R compressor cover.

Specs:

• Compressor Housing: Ported 4" Inlet / 2" Outlet
• Compressor Wheel: Billet 11-Blade 58mm Inducer w/ 76mm Extended Exducer
• Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
• Turbine Wheel: Inconel 60mm inducer / 55mm Exducer
• Oil Feed: 7/16-24"
• Warranty: 1 Year/Unlimited Mile

Turbine Housing Options

• T3 .63 A/R w/ 3" V-Band Outlet

• T3 .82 A/R w/ 3" V-Band Outlet
• T3 1.06 A/R w/ 3" V-band Outlet (+275)
• T4 .63 A/R w/ 3" V-Band Outlet (+275)
• T4 .82 A/R w/ 3" V-Band Outlet (+275)
• T4 1.06 A/R w/ 3" V-Band Outlet (+275)
• SS V-Band In/Out .63 A/R (+275)
• SS V-Band In/Out 1.06 A/R (+275)
